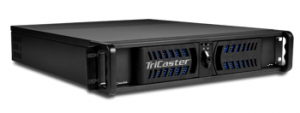

TriCaster™ TCXD450



  Dimensiones      	19 x 3.5 x 22.5 (in)48.3 x 8.9 x 57.2 (cm)
  Peso		28 lbs (12.7 kg)
  Video Processing	4:4:4:432-bit Floating Point
  Audio Processing	4 channels, 96 kHz32-bit Floating Point
  Video Input     	4 simultaneous inputs.
                          Combinacion de HD-SDI, HD Compt, SD-SDI, SD ComptY/C (BNC) or Comp.
  HD-SDI Video   	SMPTE 292M and SD Video Conforms to SMPTE 259M and ITU-R BT.656.
  Audio Input     	4 SDI Embedded 3 x 2 Balanced 1/4" (Mic/Line) 1 x 2 Balanced XLR (Mic/Line)
  Analog Audio   	SMPTE RP-155
                          Phantom Power Support
  Video Output   	2 simultaneous outputs
                          HD-SDI, HD Component, SD-SDI, SD Component, Composite, Y/C (BNC)
                          HDMI, DVI and VGA output for monitors and/or projector
                          Output sources include Program out and AUX out (configurable for Program,
                          Program clean, Preview, any input, Effects, any frame-store, alpha out)
  Audio Output   	2 SDI Embedded
                        	1 x 2 Balanced XLR
           	        	1 x 2 Balanced 1/4" (AUX)
		1 Stereo 1/4” (Phones)
  Formatos	NTSC: 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p, 720/24p, 480/60i
		Multi-Standard: NTSC-J; PAL 1080/25p, 1080/50i, 720/50p, 720/25p 576/25i
  Source Mixing   	Mix HD/SD resolution and 16:9/4:3 aspect ratios
  Recording	MPEG-2 (normal and high profile); MP3
		Full HD recording of Program output or AUX output in all resolutions up to 1080p
  		Recording Capacity	~ 20 Hours (1080i)
		1 trayless SATA III removable drive bay with hot-swap support for unlimited storage
		 and backup
  Live Streaming	Full HD live streaming in resolutions up to 720p (16:9 aspect ratio), with
		simultaneous archive
		Streaming Profile Manager with integrated Web browser for access to online
		CDN accounts to manage or view shows
  Stream Types	Adobe® Flash® to Flash media server connections or through browser based plug-ins
		Microsoft® Windows Media® Push/Pull
		Support for most common stream profiles
		Support for custom multi-bitrate streaming profiles
  Network	1 Gigabit connection for network inputs and streaming output
  Network Source	2 dedicated channels for access to external network sources
		PC and Mac® displays mirrored via NewTek iVGA™ technology, iTunes™,
		and wireless iOS devices via Apple® AirPlay® on any supported apps, including audio,
		photos and video
  Virtual Inputs	4 independent, mix/effect-style channels, each with presets, overlay and dedicated
		channel for titles,  frame-buffer or watch folder
  Live Virtual Sets	20 HD live TriCaster virtual sets, with animated zoom and independent effects,
		including positioning, scaling, cropping and 3D rotation
  Overlay		Dual downstream keys (DSK) with matting, transitions, and independent effects,
		including positioning, scaling, cropping and 3D rotation
  Media Players	4 integrated digital media players, including 2 DDRs, Graphics, and Sounds players,
		with presets and alpha channel support, with individually adjustable
		audio levels for all clips
  Preview Monitors	Full field rate displays, including Program, Look-Ahead Preview, and source windows
		configurable for All Monitors, External Monitors, Internal Monitors, and Preview Scopes
  Multi-View 	Layout choices include All Monitors, External Monitors, Internal Monitors,
		Program, Preview, Effects, Preview/Program, and Waveform/Vectorscope
  Projector Output	16:9 or 4:3 aspect ratio, up to 1920 x 1200 resolution
  Integrated CG	LiveText™2
  Nonlinear Editor	SpeedEDIT™ 2
  PlaybackFormats	Movie files: DNxHD, DV, DVCPro, DVCProHD, MOV, MKV, MJPEG, MPEG (1,2 in all profiles,
		program or transport streams), AVI, MOV, DV, H.263, H.264, FLV, WMV, MP4, and more
		Still formats: PSD, PNG, TGA, BMP, JPEG, EXR, RAW, TIF, and more
		Audio formats: WAV, MP3, AIFF and more
  Export Formats	Export module is included for batch copying with optional transcoding to a wide variety of
		different file formats and for a wide variety of different applications and devices
		Media types: AVI, DV, DVCPro, MJPEG, MP4, H.264, MPEG-2, DVD, WebM, MOV and more
		Presets for external NLEs: Adobe Premiere, Avid MediaComposer, Apple® FinalCut Pro,
		and morePresets for all mobile platforms: Android®, iPad®, iPhone®, iPod® Touch
		and more
 Signal Monitoring	Waveform and Vectorscope displays
		Full field rate with color preview
  Fail-Safe	Multi-tiered software fail-safe (audio and video)
  Accesorios 	TriCaster™ 450 CS and TriCaster 850 TW
		TriCaster Virtual Set Editor,
		TriCaster LC-11 and TriCaster LiveText™2
  Tally		DB 15 connector for 4 PGM row tally lights
  Form Factor	2U Rack Mount
